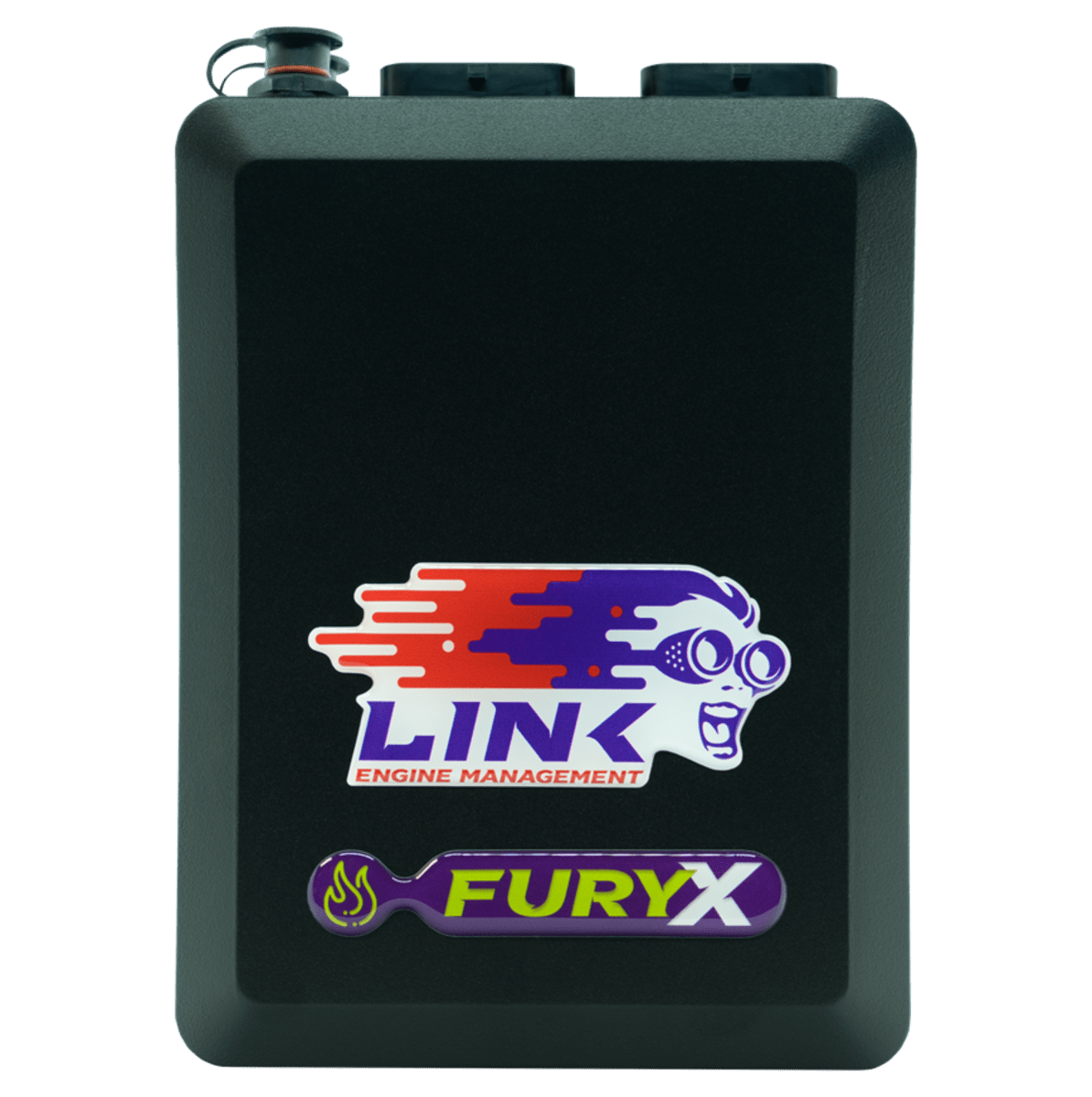

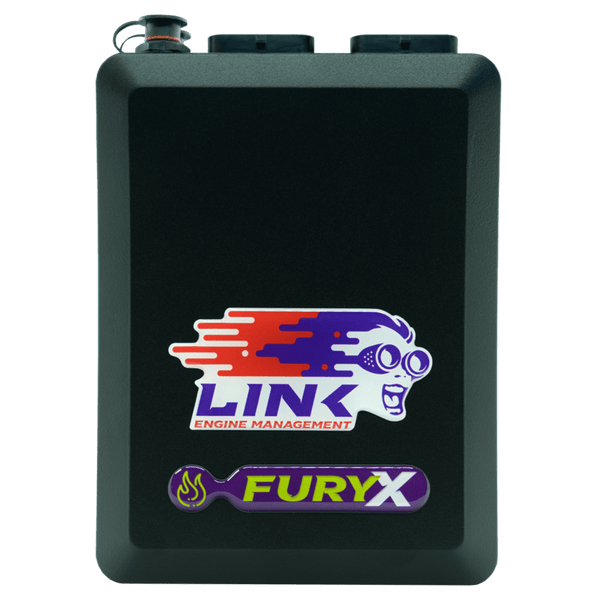

Link G4X FuryX WireIn control unit

Link G4X - Small but powerful!

Bring your car into the modern era with one of the best freely programmable control devices.

The Link G4X FuryX offers 6 individual outputs for ignition coils and 8 outputs for injectors. Ideally suited for 6-cylinder engines. Flexible configuration of various control and switching functions possible.

The FuryX has a variety of functions. The lambda sensor can be connected directly to the control unit using an integrated wideband controller. An electronic throttle output is also available.

For more detailed information, please send us a message :)

Link StormX features:

• supports all standard functions of the G4+

• 8/10 digital*, 9 analogue inputs
• 4 temperature, 2 trigger, 2 knock input
• 1 LSU broadband Lamda sensor input
• 8 injector, 6 ignition coil, 10x aux output
• 5V + 8V sensor support
• Communication via 2x Can Bus, 1x RS232 Serial port, 1x USB port
• 512MB internal memory for logging

• configurable inputs and outputs
• Configurable using Windows software

Dimensions: 185mmx130mmx40mm without cable

Requires the additional link "A" and "B" cables or "A" & "B" connector kits - which we also offer!

Scope of delivery: control unit, USB connection cable, holder, sticker

We would be happy to install the FuryX control unit for you, including installing all sensors, or advise you on putting together your set-up.

Coordination with a test bench run is also available from us. Please contact us for an individual offer.
