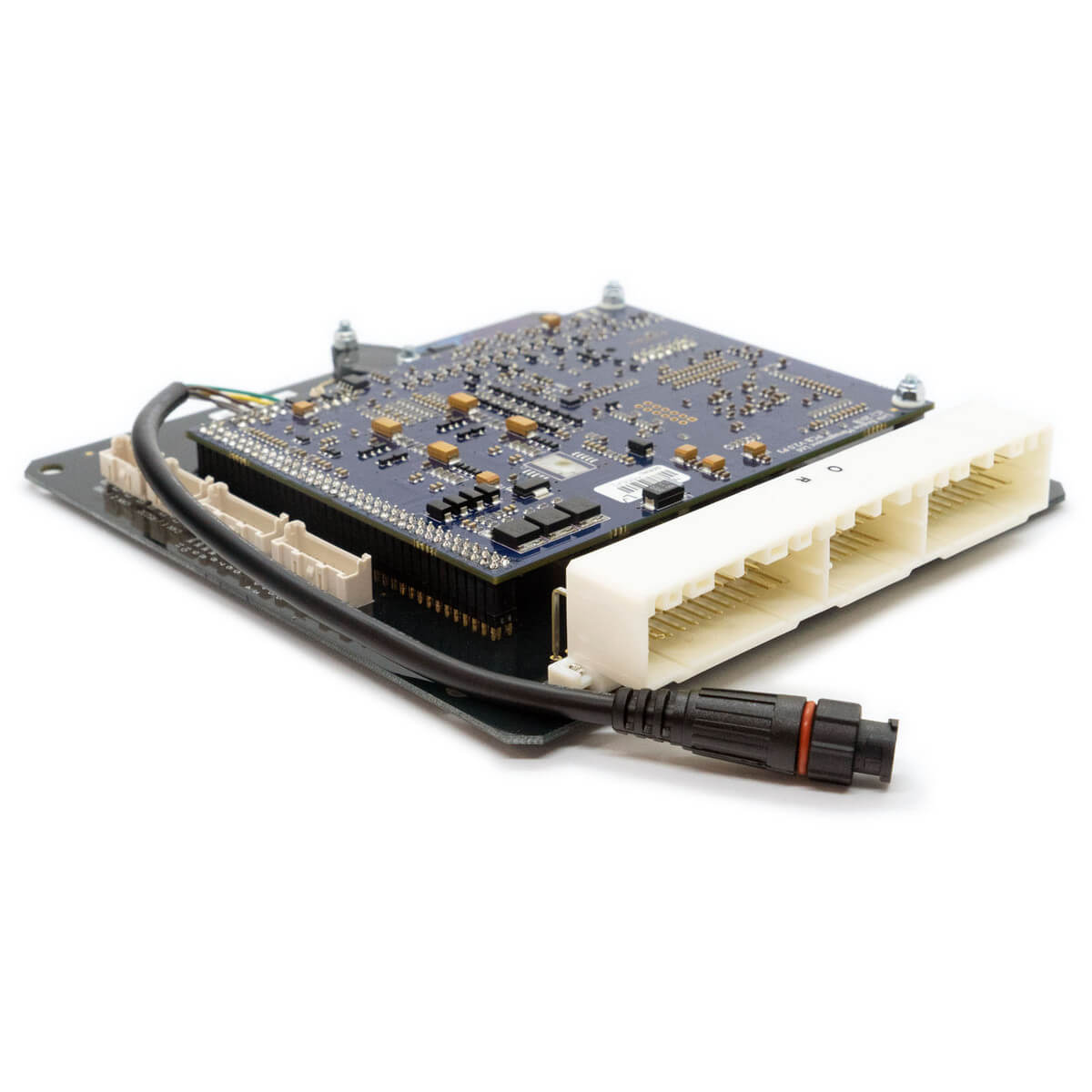

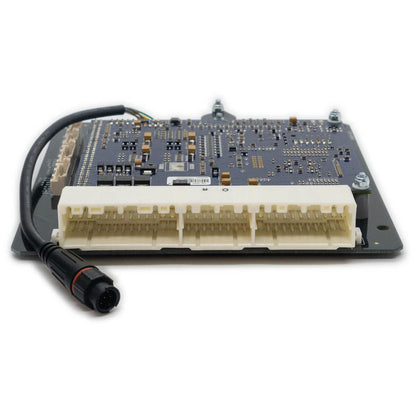

Link G4X control unit Mitsubishi Evo 1-3

Link G4X - the latest technology for your Evo at a fair price. Latest technology...


Regular price €1.379,00
Regular price €1.379,00
Notify Me

Print

Link G4X - the latest technology for your Evo at a fair price.

Latest technology for your Japanese young timer. The Link G4X can be installed without making any changes to the standard wiring harness, hiding in the original housing and offering a variety of new possibilities.


Thanks to many expansion options, every parameter can be monitored and output with the Link G4X; displays can also be connected and give you information about all engine values.

This control unit is suitable for the following vehicles:

- Mitsubishi EVO 1-3 with 4G63 / chassis number CD9A or CE9A
(EVO 1 92-94, EVO 2 94-95, EVO 3 95-96)

- Mitsubishi GSR 1.8L 4G62

Only for vehicles with manual transmission. Please compare the pictures of the plugs with your original control unit.


Link G4X features:

  • 6D injection and ignition maps
  • Precise and independent closed-loop camshaft control
  • Sequential fuel control
  • Digital trigger system that supports all OEM systems
  • Standard idle controls are supported
  • 5D boost pressure control with Mapswitch
  • Antilag, launch control & flat shift
  • Mapsensor on-board on many models with automatic correction depending on ambient pressure
  • Can Port and OBD capable
  • Autotune mode to start for the first time
  • Individual knock correction
  • 512MB on-board memory for log files
  • Boost/Ignition/Fuel by Gear
  • Almost all OEM sensors can be learned
  • Knock control with output
  • massively expandable with inputs for e.g. oil pressure, oil temperature, exhaust gas temperature etc
  • Safety features programmable (e.g. engine off when oil pressure is below xy)
  • Digital lambda control via CAN module

We would be happy to install the EVOLink (I-III) - EVO3X control unit for you, including installing all sensors, or advise you on putting together your set-up.

Coordination with a test bench run is also available from us. Please contact us for an individual offer.
