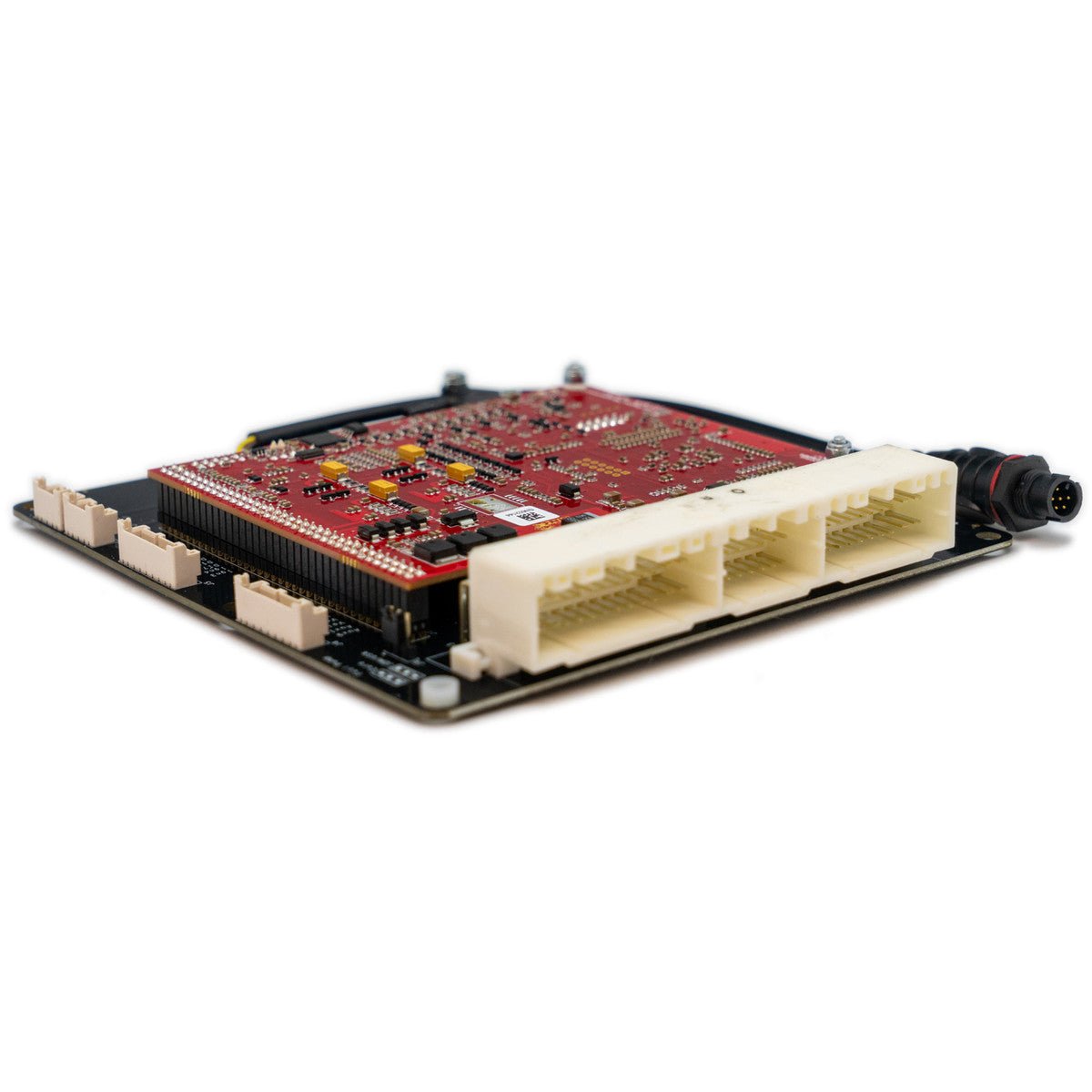

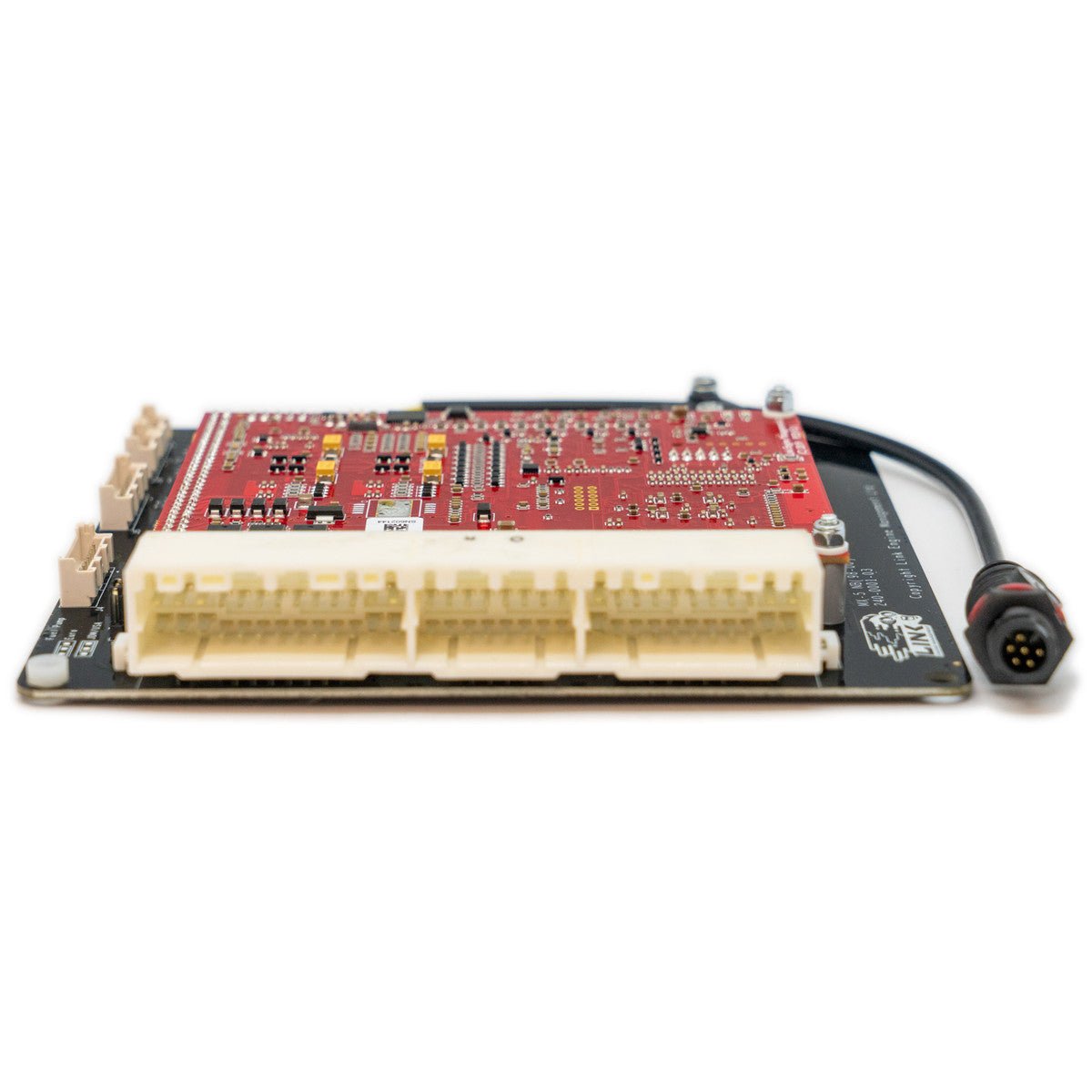

Link G4X control unit Mazda MX5 NB Pre-FL

Link G4X for your Miata NB 1.8

Bring your car up to date with one of the best freely programmable control devices. The Link G4X can be installed in the original housing without making any changes to the standard wiring harness and offers you the necessary computing power for a turbo or compressor conversion.

Thanks to many expansion options, every parameter can be monitored and output with the Link G4X. Displays can also be connected, making inaccurate and sluggish additional displays unnecessary.

This control unit is suitable for the following vehicles:

- Mazda MX5 NB Pre-Facelift (98-00) with 1.8 non-VVT

Only for vehicles with manual transmission. Please compare the pictures of the plugs with your original control unit.

Link G4X features:

• 6D injection and ignition maps
• Precise and independent closed-loop camshaft control
• Sequential fuel control
• Digital trigger system that supports all OEM systems
• Standard idle controls are supported
• 5D boost pressure control with Mapswitch
• Antilag, launch control & flat shift
• Mapsensor on-board on many models with automatic correction depending on ambient pressure
• Can Port and OBD capable
• Autotune mode to start for the first time
• 512MB on-board memory for log files
• Boost/Ignition/Fuel by Gear
• Almost all OEM sensors can be learned
• massively expandable with inputs for e.g. oil pressure, oil temperature, exhaust gas temperature etc
• Safety features programmable (e.g. engine off when oil pressure is below xy)
• Digital lambda control via CAN module

Note: This ECU has a new 4-pin CAN connection. The old CANPCB cable cannot therefore be used.
The CANJST4 cable can be used to connect CAN devices. This new 4-pin connector and cable also provides protected power and ground for powering the CAN devices.

We would be happy to install the MX5Link control unit for you, including installing all sensors, or advise you on putting together your set-up.

Coordination with a test bench run is also available from us. Please contact us for an individual offer.
