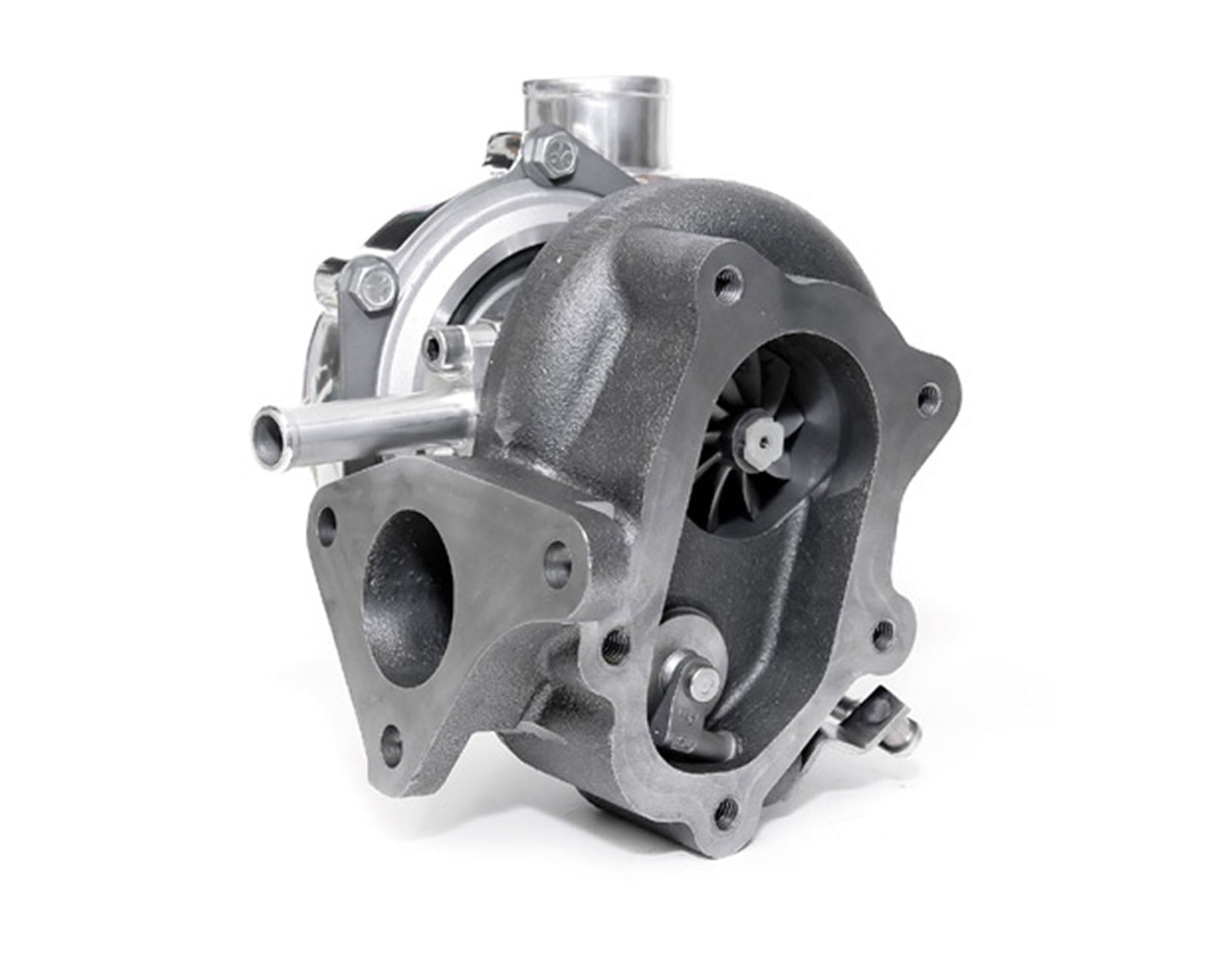

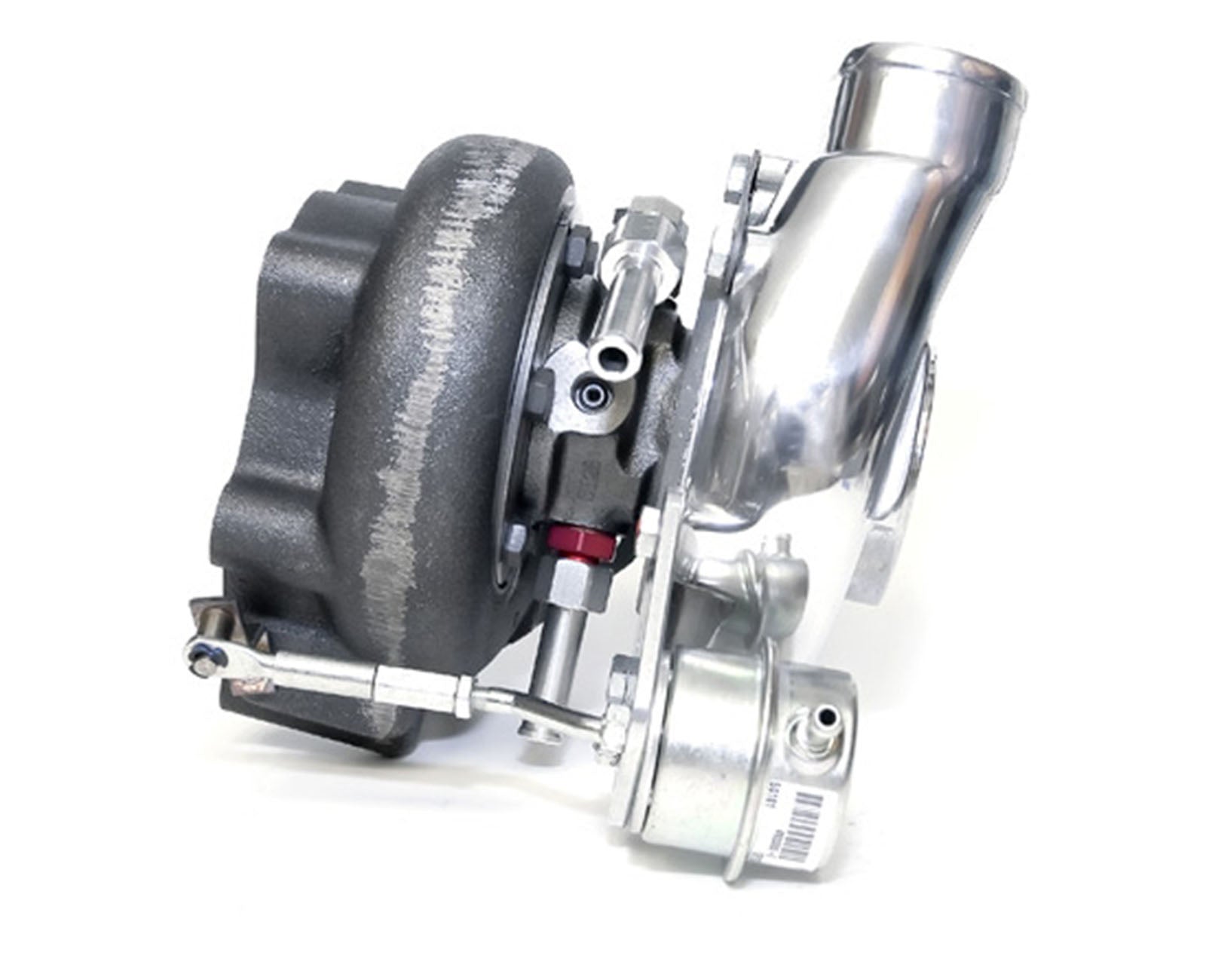

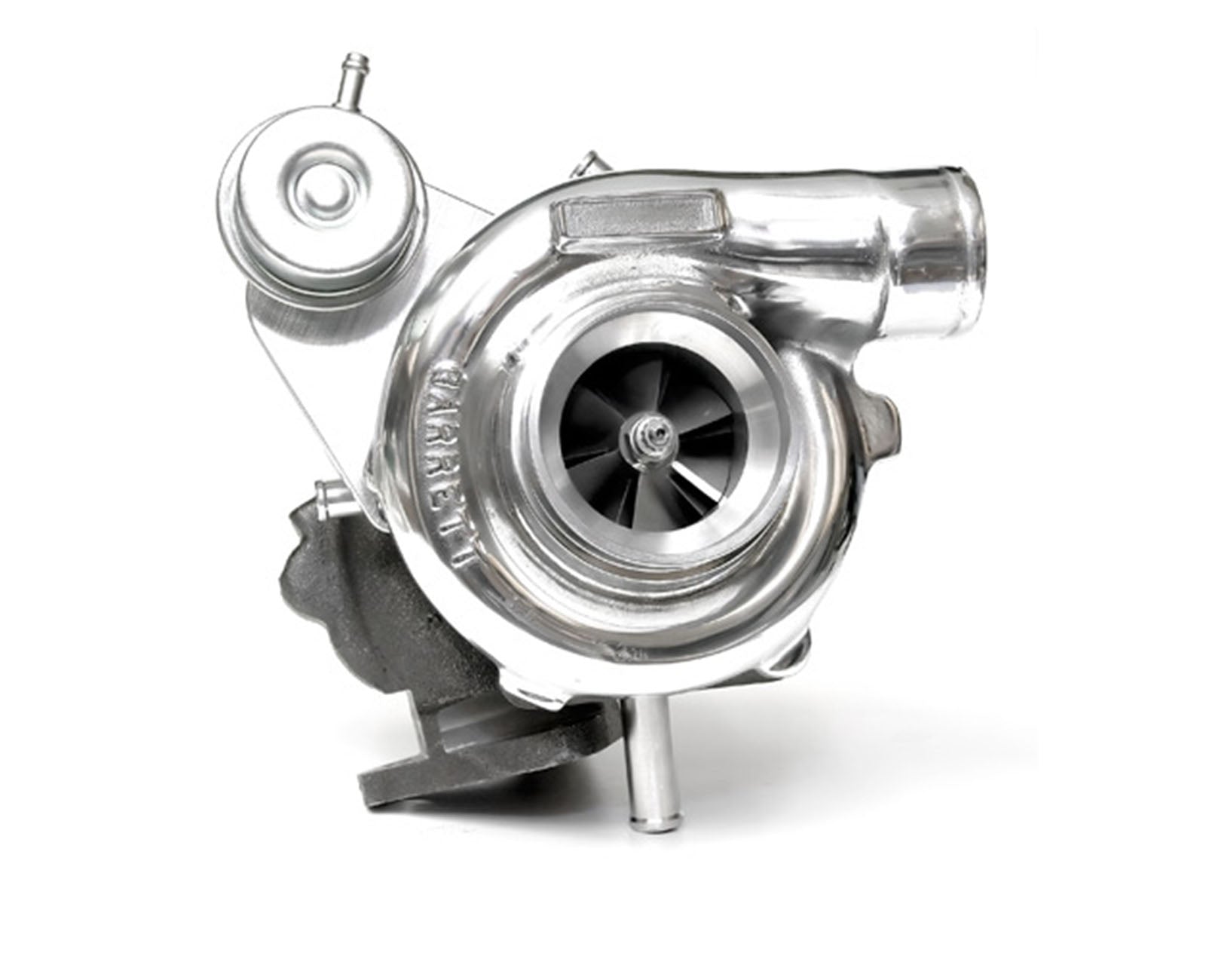

Bolt on Turbo Kit for all single scroll engines
The ball bearing Garrett GT3076R, which makes 500+ HP possible, is now available as a ready-to-install package for the Subaru WRX / STI!
Installation is made easier by a series of specially manufactured components, which speeds up the replacement of the original turbocharger.
All included components for oil supply and cooling were developed so that connecting the turbo is problem-free and the new turbo sits practically like the original.
In principle, after installing the turbos and tuning, you are ready to go. The Garrett GT Turbos not only offer maximum power, but also more torque in the lower speed range. Compared to other turbos, the power is easier to access.
We also recommend aftermarket downpipe and intake for improved airflow.
The GT3076R is perfect for the 2.5L engine as it only responds a little later than the original turbo, but is still sufficient for over 500hp.
The GT3076R responds almost 300-400 revolutions later than the GT3071R, but offers more potential than the GT3071R, which stops after 450 HP.
But the turbo cannot be ruled out for the 2.0L engine if the performance target is in the same region. This competition turbo is a favorite for such performance regions as it responds while other 500hp turbos are still building up boost pressure.
Suitable for:
- All single scroll motors
We would be happy to help you set up your engine and give you expert advice on your performance goals - just send us an email or call us.

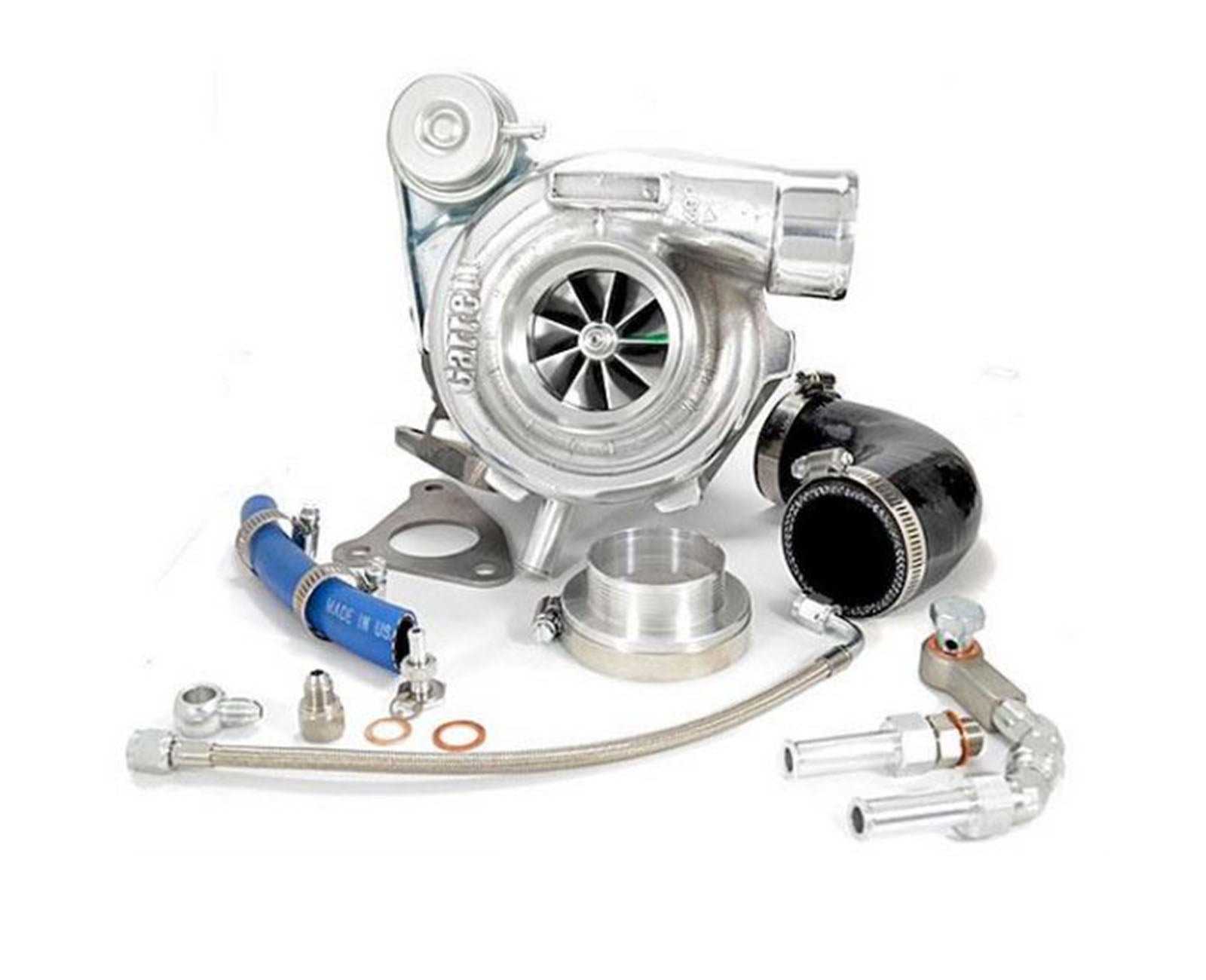

Scope of delivery:
- GT3076R ball bearing turbo
- Installation kit
Specs:
- Garrett factory assembled and high speed balanced dual ball bearing CHRA
- Internal wastegate
- Assembled into a set of CNC machine ported housings that have been optimized in every aspect for maximum flow and efficiency
- All accompanying oil and coolant supply components included
- Designed to properly and seamlessly bridge the Garrett GT turbo to the EJ engine so that the fit is as OE as possible
- Includes a 3″ inlet as well as a 2.25″ “step-down” inlet sleeve
- Capable of making 500+ BHP with supporting mods
